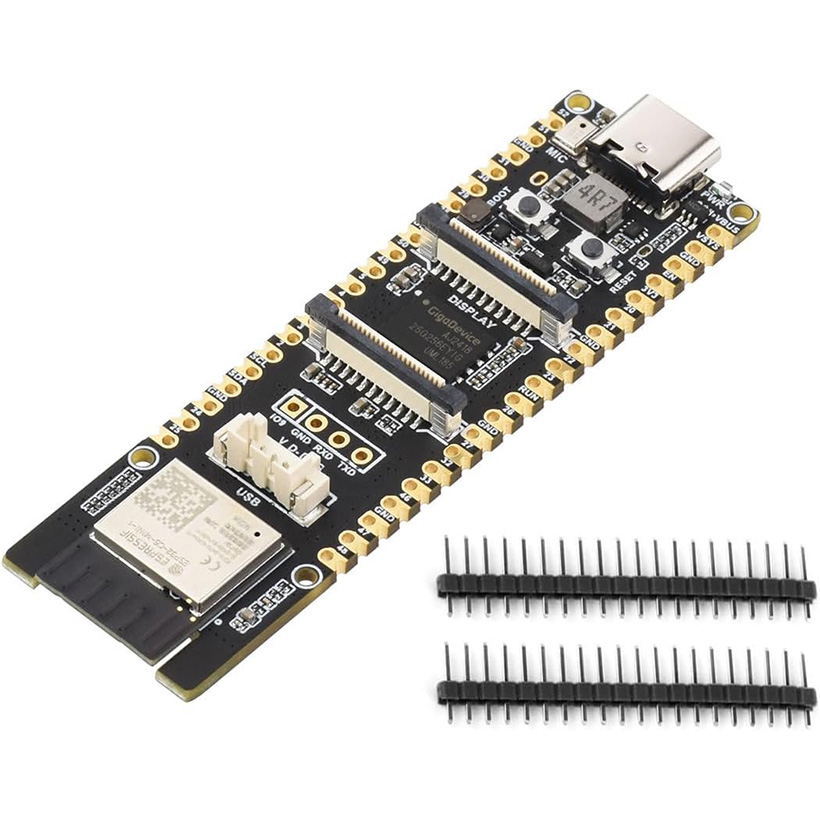

ESP32-P4-WiFi6 Board (with ESP32-C6, and 32MB PSRAM and 32MB Flash)
It is a High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5 / BLE. With 32MB Flash + 32MB PSRAM
ESP32-P4-WIFI6 High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5 / BLE
About this item
High-Performance Processing: Features a RISC-V 32-bit dual-core and single-core MCU, delivering powerful and efficient computing performance.
Advanced Memory and Storage: Includes 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM, and 32MB PSRAM, with onboard 32MB Nor Flash for enhanced data handling.
Robust Image and Voice Processing: Supports JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, and H264 encoder for high-quality image and voice processing.
Versatile Peripherals and Security: Equipped with essential peripherals such as MIPI-CSI, USB 2.0 OTG, and SDIO 3.0, along with advanced security features like Secure Boot, Flash Encryption, and cryptographic accelerators.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
Features
Processor
Equipped with a RISC-V 32-bit dual-core processor (HP system), featuring DSP and ISA extensions, a Floating-Point Unit (FPU), with a main frequency of up to 360 MHz.
Has RISC-V 32-bit single-core processor (LP system), with a main frequency of up to 40 MHz.

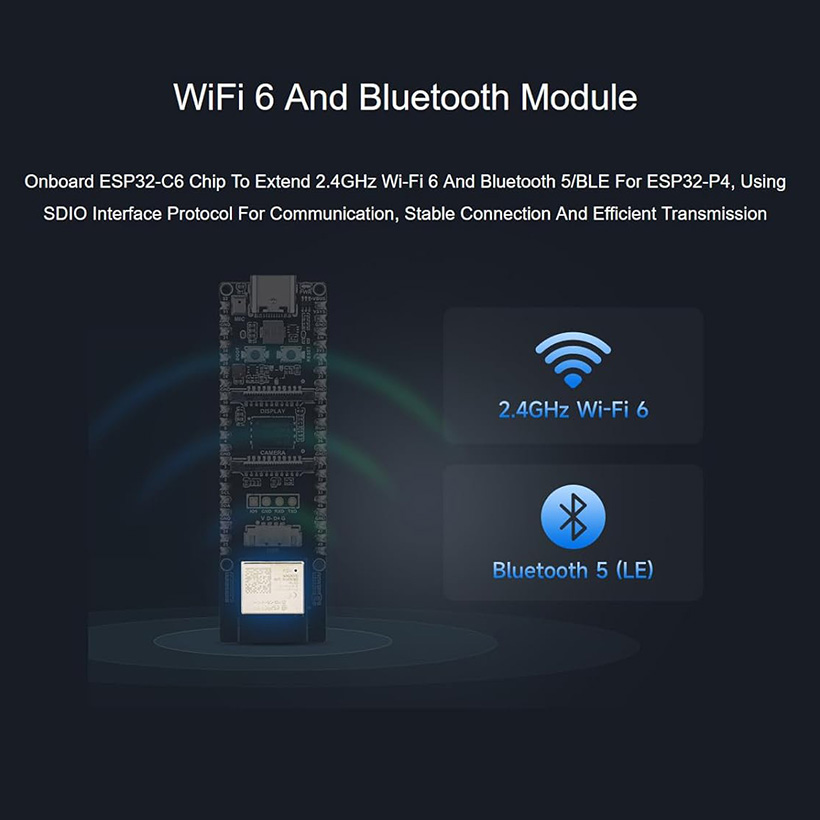

Equipped with an ESP32-C6 WIFI/BT co-processor, expanding WIFI 6/Bluetooth 5 and other functions through SDIO
Memory
128 KB of high-performance (HP) system read-only memory (ROM).
16 KB of low-power (LP) system read-only memory (ROM).
768 KB of high-performance (HP) L2 memory (L2MEM).
32 KB of low-power (LP) SRAM.
8 KB of system tightly coupled memory (TCM).
32 MB PSRAM stacked in the package, onboard 32MB Nor Flash
Onboard speaker interface and microphone, enabling ideal audio functionality using the Codec chip and amplifier chip
Onboard MIPI-CSI high-definition camera interface, supporting Full HD 1080P image capture and encoding, integrated Image Signal Processor (ISP), H.264 video encoder, supports H.264 & JPEG video encoding (1080P @30fps), facilitating applications in computer vision, machine vision, and other fields
Onboard MIPI-DSI high-definition display interface, integrated Pixel Processing Accelerator (PPA), 2D graphics acceleration controller (2D DMA), supports JPEG image decoding (1080P @30fps), providing strong support for high-definition display and smooth HMI experiences, suitable for applications such as smart home control panels, industrial control panels, and vending machines
