Seeed studio XIAO RP2350 – 2MB Flash, 520kB SRAM

Seeed studio XIAO RP2350, Compatible with C/C++ and MicroPython, RGB LED, 2MB Flash, 520kB SRAM, Hazard3 RISC‑V cores

About this item

• Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring dual-core, dual-architecture capability, allowing developers to switch between the dual industry-standard Arm Cortex-M33 cores @ 150MHz with FPU, and a pair of open-hardware Hazard3 RISC‑V cores
• Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security.
• Software Support: Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping.
• Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM).

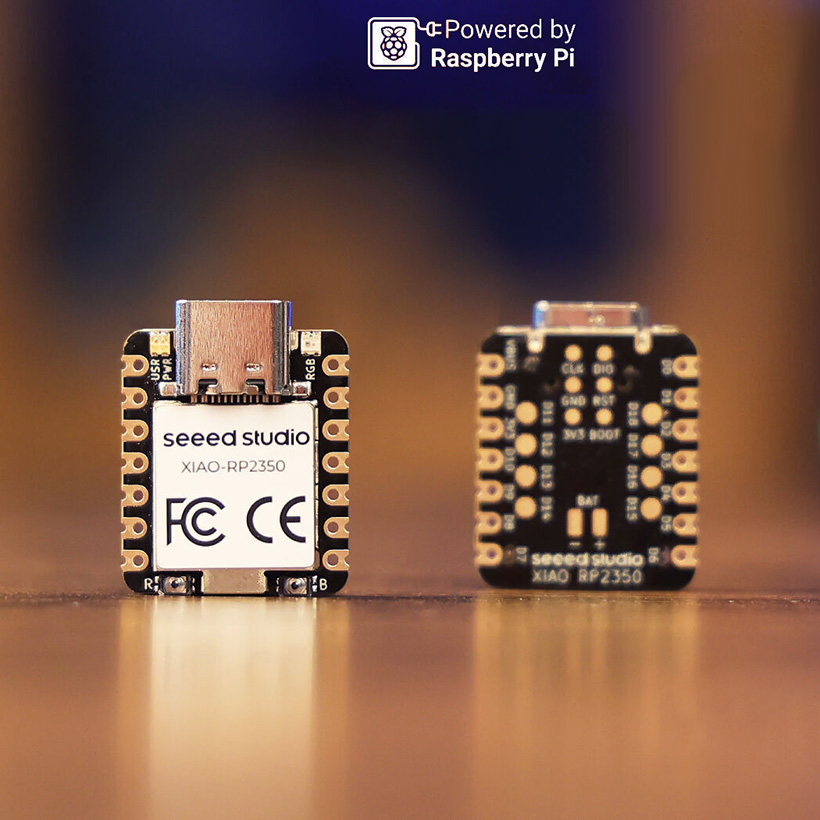

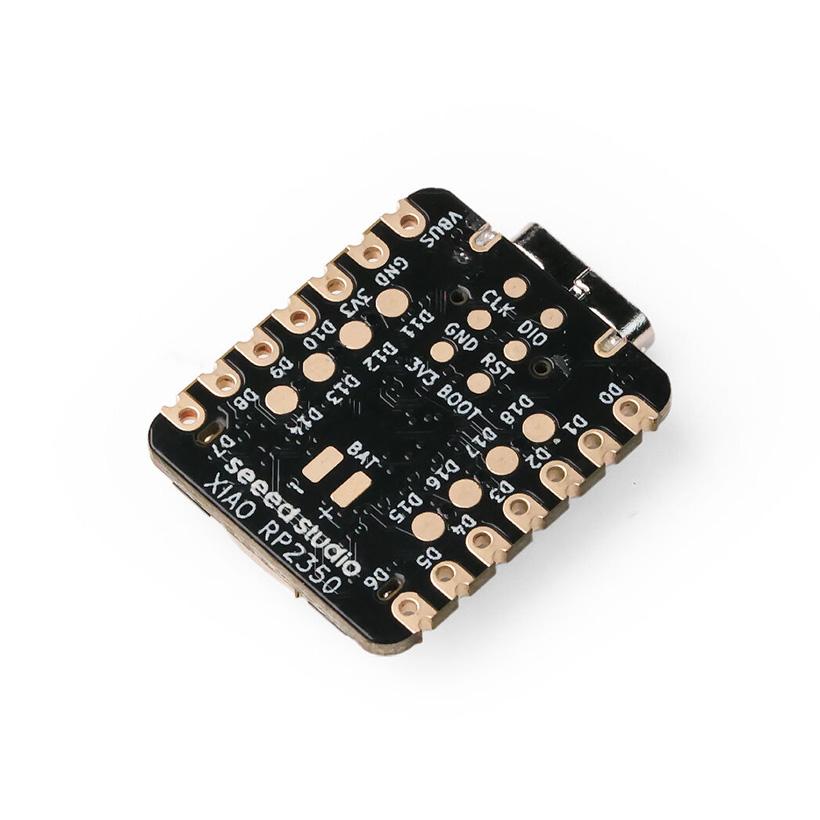

• Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications.
• Efficient Power Design: Ultra-low power consumption of just 27μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS).

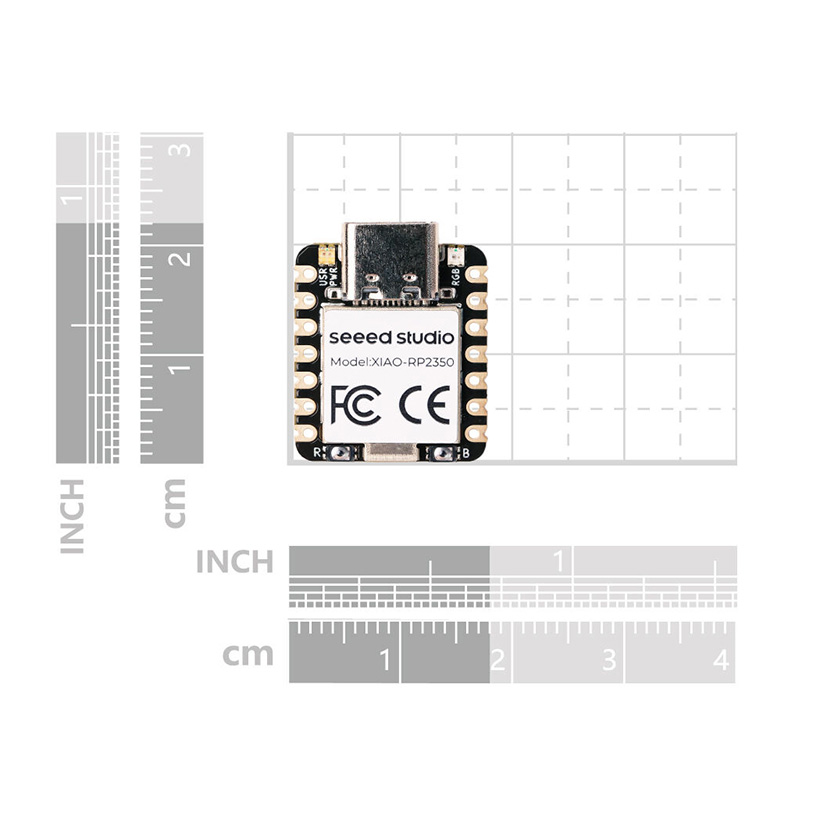

• Compact Thumb-Sized Design: Measuring 21 x 17.8mm, adopting Seeed Studio’s classic XIAO form factor, ideal for space-conscious applications.
• Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production.
